12 Lead ECG Monitor 3 Channel

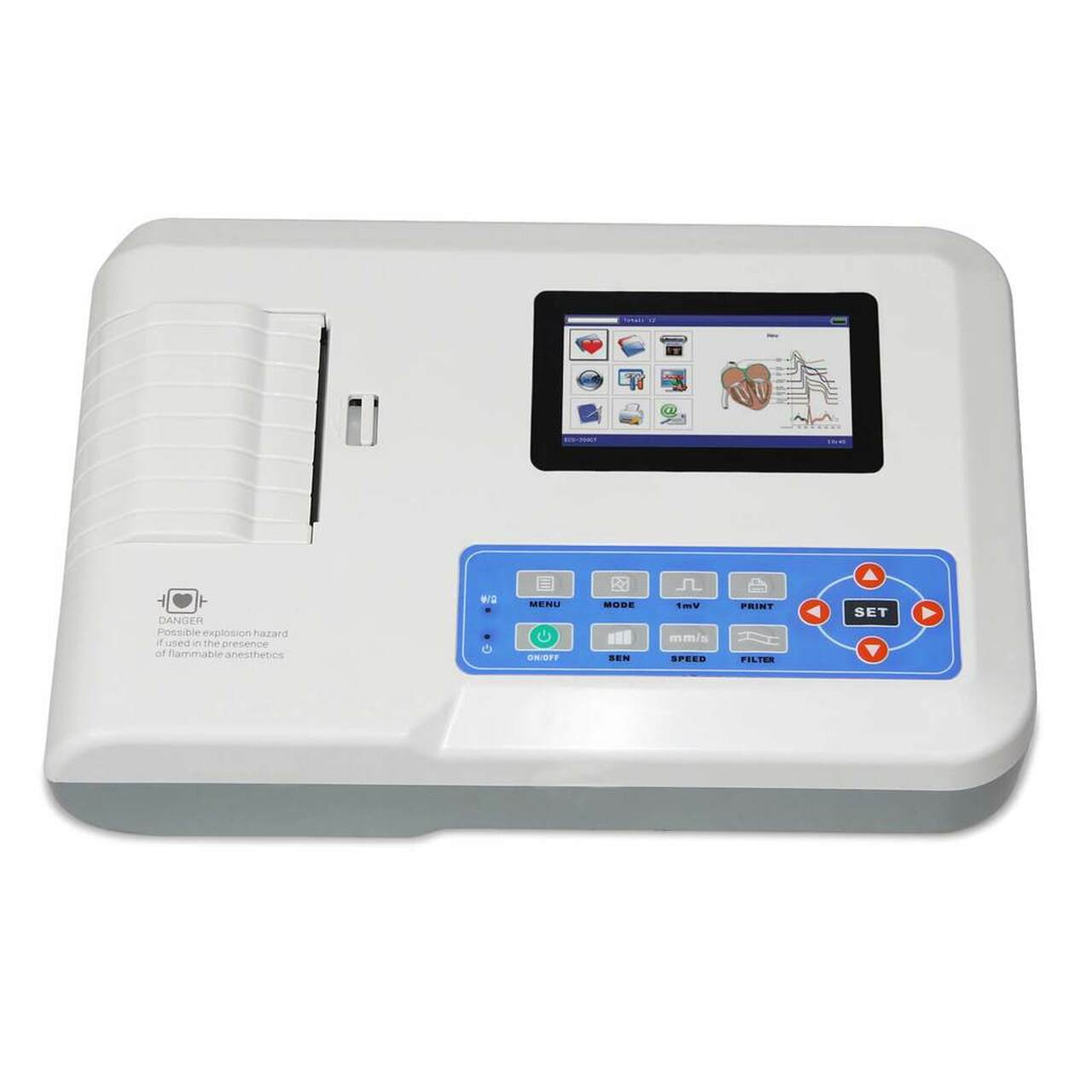

Our ECG300GT Touch Screen Portable ECG/EKG machine 12-Leads 3 Channel+Printer Is an Electrocardiograph which can collect 12-lead ECG signal and print waveform by the thermal printing system.

ECG300GT Touch Screen Portable ECG/EKG machine 12-Leads 3 Channel+Printer  features in: recording and displaying ECG waveform in AUTO/Manual mode, measuring and diagnosing ECG waveform parameters automatically, prompting for “Lead off” or “Lack of paper”, multi-language interface, case database management.

Function of ECG300GT Touch Screen Portable ECG/EKG machine 12-Leads 3 Channel+Printer

• Sync collection for 12-lead ECG, adopt digital signal processing technology and get high-quality ECG waveform via power frequency filter, baseline filter and EMG filter of ECG signal.
• Display of 3/6/12-lead ECG, print mode, sensitivity, paper speed and filter state, etc. on one screen, convenient for contrastively diagnosing.
• Multiply printing modes and formats, including manual, auto 4×3, auto 3×4+1, auto 3×4, auto 2×6+1, auto 2×6, auto 3-2+1, auto 3-2, auto 1×12+1, auto 1×12, rhythm 4, rhythm 3 and rhythm 2, etc. Waveform length printed can be adjusted, and with time print function, which meets different requirements.
• With the functions of auto-analysis and auto-diagnosis for routine ECG parameters, provide measurement results and auto-diagnosis conclusion for HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1), etc. which reduces the doctor’s burden.
• Built-in memory stores up to 1000 cases, convenient for case review and statistic.

Touch Screen Portable ECG/EKG machine 12-Leads 3 Channel+Printer

• Working environment
• Temperature: 5℃~40℃
• Relative humidity: 25%~95%(non-condensing)
• Atmospheric pressure: 700hPa~1060hPa
• Transport and storage environment
• Temperature: -40℃~+55℃
• Relative humidity: ≤95%
• Atmospheric pressure: 500hPa~1060hPa
• Dimension: 315mm(L) × 215mm(W) × 77mm(H)
• Weigh: 1.6Kg
